Wide range of thicknesses and dimensions
Product formSheets, Plates & Coils
/ 01 — TECHNICAL OVERVIEW

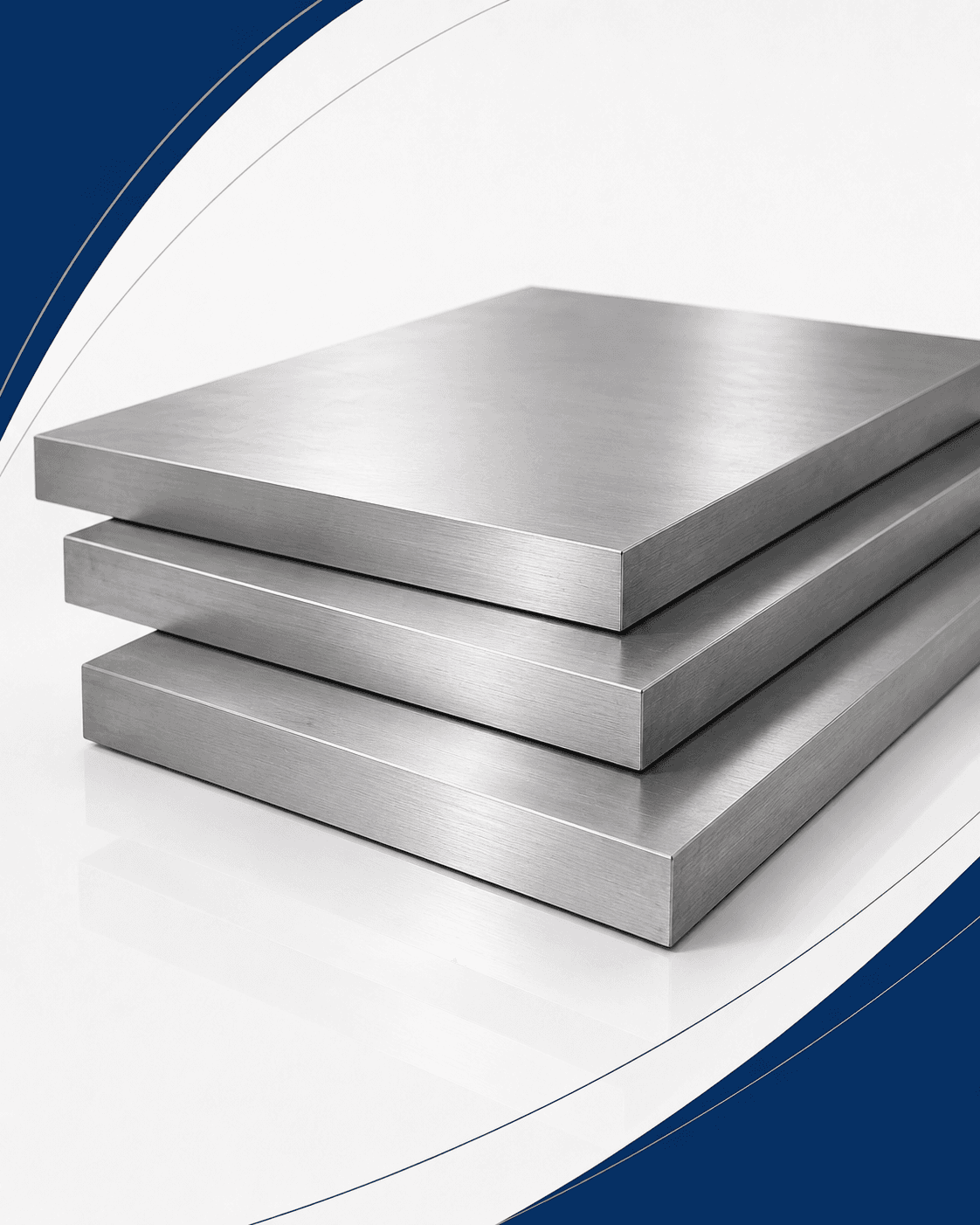

Plates
Flat products are used for fabrication, pressure equipment, tanks, process vessels, cladding, formed components, heat shields, shims and general engineering. Selection should define grade, product form, thickness, width, length or coil dimensions, finish, edge condition, flatness, testing and protective packing.
Whether the requirement is for standard maintenance quantities or a project package, our team reviews each sheets, plates & coils enquiry against the requested material, dimensions, specification, service conditions, inspection and delivery plan. Availability may include ex-stock, mill production or made-to-order supply depending on the combination.
How it is made
01
Traceable slab is reheated and rolled to the specified plate thickness and width.
02
Solution heat treatment or the grade-specific thermal cycle establishes the ordered condition.
03
Descaling, shot blasting, pickling or grinding produces the required surface.
04
Plates are levelled and supplied full-size or cut to drawings by approved processing routes.
05
Thickness, dimensions, flatness, surface, PMI and ultrasonic testing are completed when specified.
Request reviewed quotation Material documents on request
/ 02 — PRODUCT DETAIL
Built around the specification.
Key characteristics and commonly referenced standards from the supplied technical content master.
Key features01 02 03 04
Mill plates or cut profiles
Solution annealed, hot rolled or descaled conditions
UT, PMI and mechanical test options
Common specification references
STD
ASTM A240 for stainless/duplex plate
STD
Material-specific nickel/copper/titanium plate standards
STD
Project-specific pressure-vessel or fabrication requirements
Explore the sheets, plates & coils range
/ 03 — MATERIAL RANGE
Grades matched to the service.
Commonly requested families are shown below. Availability is confirmed against the complete specification.
Material familyCommon gradesTypical selection context
Austenitic stainless304/304L, 316/316L, 321, 347, 317L, 904L
Fabrication, vessels, food, pharmaceutical and chemical equipment
Duplex / super duplexS32205, S32750, S32760, S32304
Higher strength and chloride-bearing process or marine service
Nickel alloysN06600, N06625, N08825, N10276 and others
Severe corrosion and elevated-temperature equipment
Titanium / copper-nickelGrades 2, 5, 7; C70600, C71500
Heat exchangers, marine systems and specialised chemical fabrication
/ 04 — SUPPLY & CUSTOMISATION
Define the supply condition.
Final availability depends on the complete combination of material, dimensions, standard, condition, testing and quantity.
ParameterTypical information to specify
01Forms
Sheet, plate, coil, strip, blank or profile
02Thickness
Nominal thickness and tolerance
03Dimensions
Width × length or coil width/ID/OD/weight
04Finish
No.1, 2B, BA, No.4, hairline, mirror or project-specific
05Edges
Mill, slit, sheared, deburred or machined
06Processing
Cutting, slitting, levelling, bending, drilling or profiling
07Protection
Paper interleave, PVC film, oiling or moisture-barrier packing
/ 05 — DIMENSIONS & SIZE RANGE
Dimensions aligned to the manufacturing route.
Flat-product availability depends on the combined grade, thickness, width, length or coil geometry, finish and tolerance. State whether dimensions are nominal or minimum.
Ordering parameterTypical optionsWhat to stateAcceptance focus
ThicknessSheet, plate or precision shim gaugeNominal value and toleranceUniformity and permitted variation
Width / lengthMill size, cut size or drawing profileFinished dimensions and squarenessEdge and diagonal tolerance
Coil geometryWidth, ID, OD and maximum weightSlit/master coil and orientationTelescoping and edge condition
FinishNo.1, 2B, BA, No.4, hairline or polishedFinish designation and protective filmSurface reference / sample if critical
/ 06 — MANUFACTURING STANDARDS
Standards aligned for every order.
The material standard, dimensional standard and project requirements should be stated separately.
ReferenceWhat it coversRole
ASTM A240/A240MStainless steel plate, sheet and strip for pressure vessels and general applications
Material specification
ASTM A480/A480MGeneral requirements for flat-rolled stainless steel products
Tolerance / finish basis
ASTM A666/A666MAnnealed or cold-worked austenitic stainless sheet, strip, plate and flat bar
Selected applications
ASTM B-seriesGrade-specific nickel, copper-nickel and titanium flat-product specifications
Material-specific
EN 10088Stainless steel flat products under the applicable part and delivery condition
European reference
Customer drawing / POSize, tolerance, finish, edge, processing and inspection
Order-specific
/ 07 — INSPECTION & TESTING
Evidence before dispatch.
01MTC and heat-number traceability review
02Thickness, width, length and diagonal checks
03Flatness, edge and surface-finish inspection
04PMI when specified
05Ultrasonic testing for plate where ordered
06Hardness, mechanical or corrosion testing to the material specification
07Film, interleave, marking and packing verification
PACKAGING & MARKING
Protected and traceable.
01Sheets stacked on skids with edge and corner protection
02Plates strapped on heavy timber bearers or in export frames
03Coils wrapped with moisture barriers and bore/edge protection
04Protective film or paper interleave when specified
05Heat, grade, size, finish and PO identification retained on every package
/ 08 — APPLICATIONS & INDUSTRIES
Engineered for demanding service environments.
From process plants to marine systems, NESCO coordinates material, dimensions and documentation around the operating conditions of each application.
01
Pressure vessels and tanks02
Heat exchangers and tube sheets03
Chemical equipment04
Food and pharmaceutical equipment05
Marine fabrication06
Architectural and decorative work07
Automotive and transport components08
General fabrication and shimmingIndustries servedOne supply partner across critical sectors.
Chemical processingFood & beveragePharmaceuticalOil & gasPower generationMarineArchitectureTransportGeneral fabrication
/ 09 — WHY NESCO PIPE & TUBES
Built for buyers who cannot leave details to chance.
From specification review to export documentation, NESCO coordinates the technical and commercial details as one complete supply requirement.
01
Specification control
NESCO reviews the grade, product standard, dimensions, condition and acceptance criteria as one coordinated requirement.
02
Multi-material sourcing
Stainless steel, duplex, nickel alloy, copper-nickel and titanium requirements can be combined within one project enquiry.
03
Traceable documentation
Heat numbers, MTCs and agreed inspection records are aligned with the purchase order before dispatch.
04
Inspection coordination
PMI, dimensional checks, NDT and third-party witnessing can be arranged against an approved inspection plan.
05
Value-added processing
Cutting, machining, end preparation, polishing or protective finishing can be reviewed with the base material supply.
06
Export-ready packing
Identification, surface protection and packing are planned around product geometry and the final transport route.
07
Responsive RFQ review
Technical and commercial inputs are consolidated early so queries are resolved before quotation and production.
08
One accountable supply desk
NESCO provides a single contact for material, processing, documentation, packing and delivery coordination.
/ 10 — FREQUENTLY ASKED QUESTIONS
Clear answers before you specify.
Quick guidance on product selection, standards, dimensions, inspection and documentation. For project-specific requirements, NESCO will review the complete enquiry with your team.
01When should ultrasonic testing be specified?
UT is commonly considered for thicker or critical plates used in pressure, structural or machined components; the acceptance standard and scanning scope must be stated.
02Can plate be cut to drawings?
Profiles, blanks, rings and drilled or machined parts can be reviewed against drawing tolerances and traceability requirements.
03Which flat-product details are essential for quotation?
State grade, product form, material standard, thickness, width, length or coil geometry, finish, edge, quantity and certificates.
04Can NESCO provide cut-to-size material?
Cut sheets, plates, strips, blanks and drawing-based profiles can be reviewed against tolerance, quantity and traceability requirements.
05Are decorative finishes consistent between batches?
Visual appearance may vary by mill and processing batch. Samples, direction, surface-protection film and acceptance criteria should be agreed for appearance-critical work.
06Can PMI and third-party inspection be arranged?
Yes, when the inspection scope, agency and hold points are included before order placement.
/ 11 — REQUEST FOR QUOTATION Nesco direct sales desk
Ready to source?Start with the details you already have.
Our team will review the grade, dimensions, testing and delivery requirements together.
